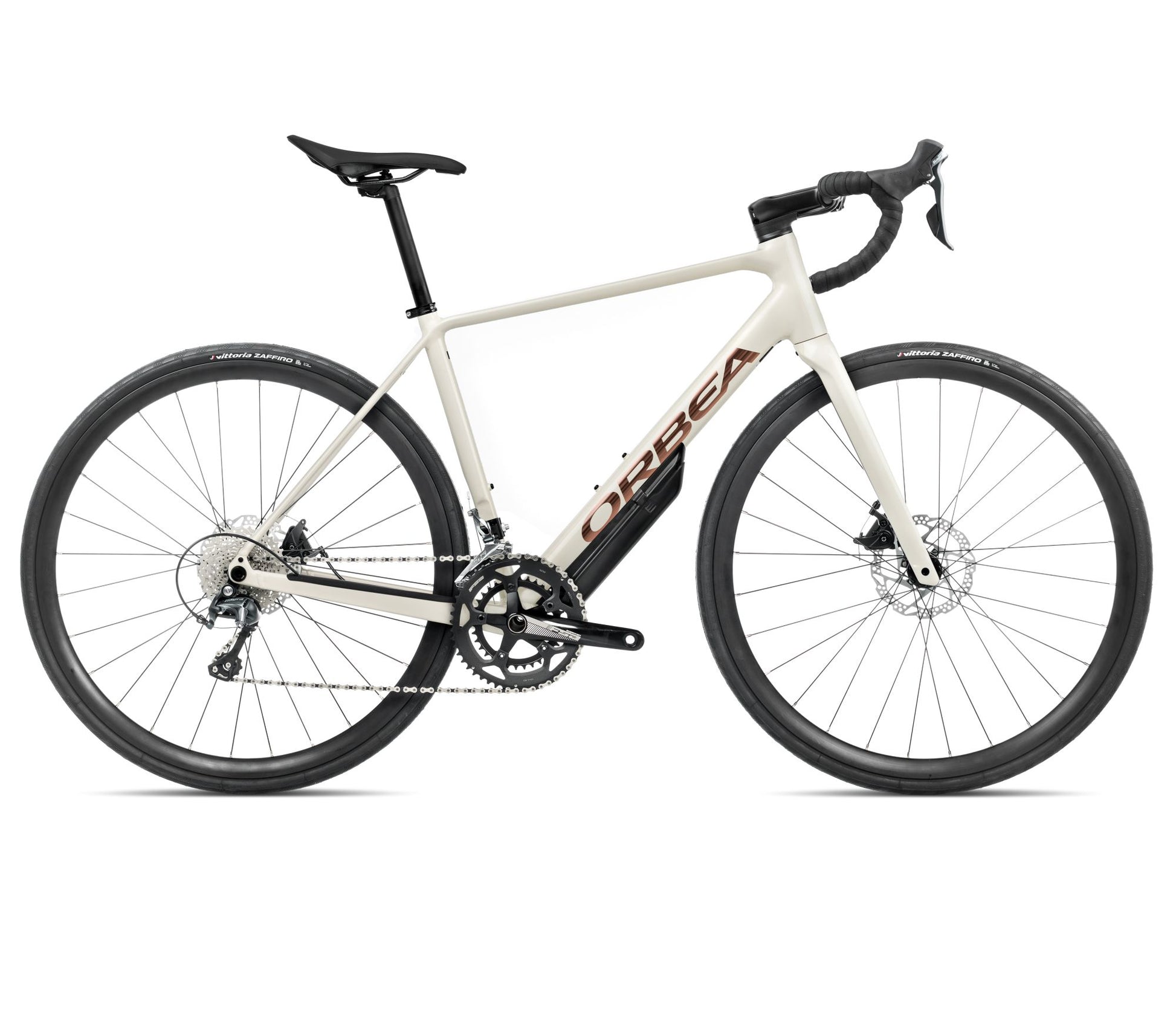

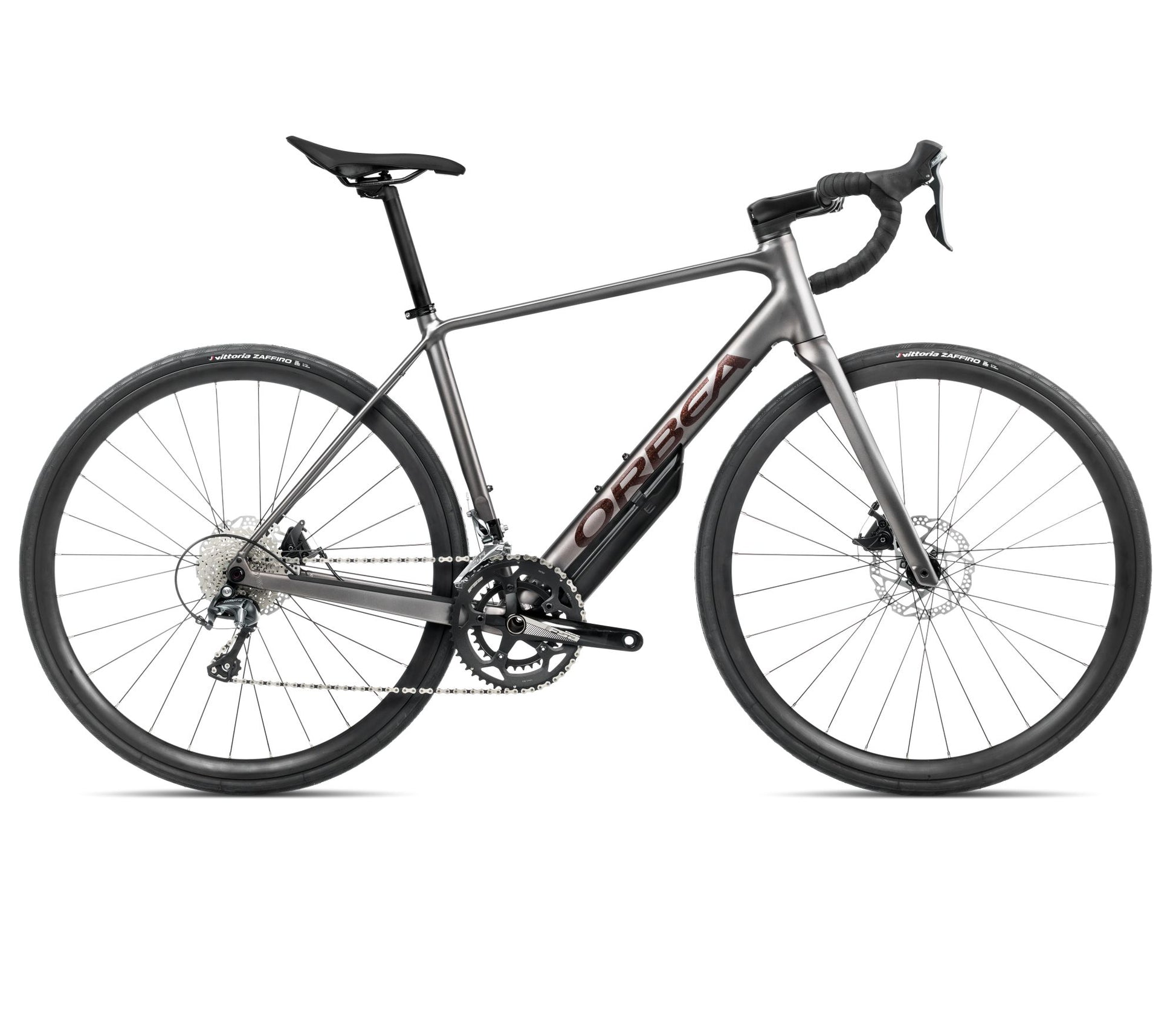

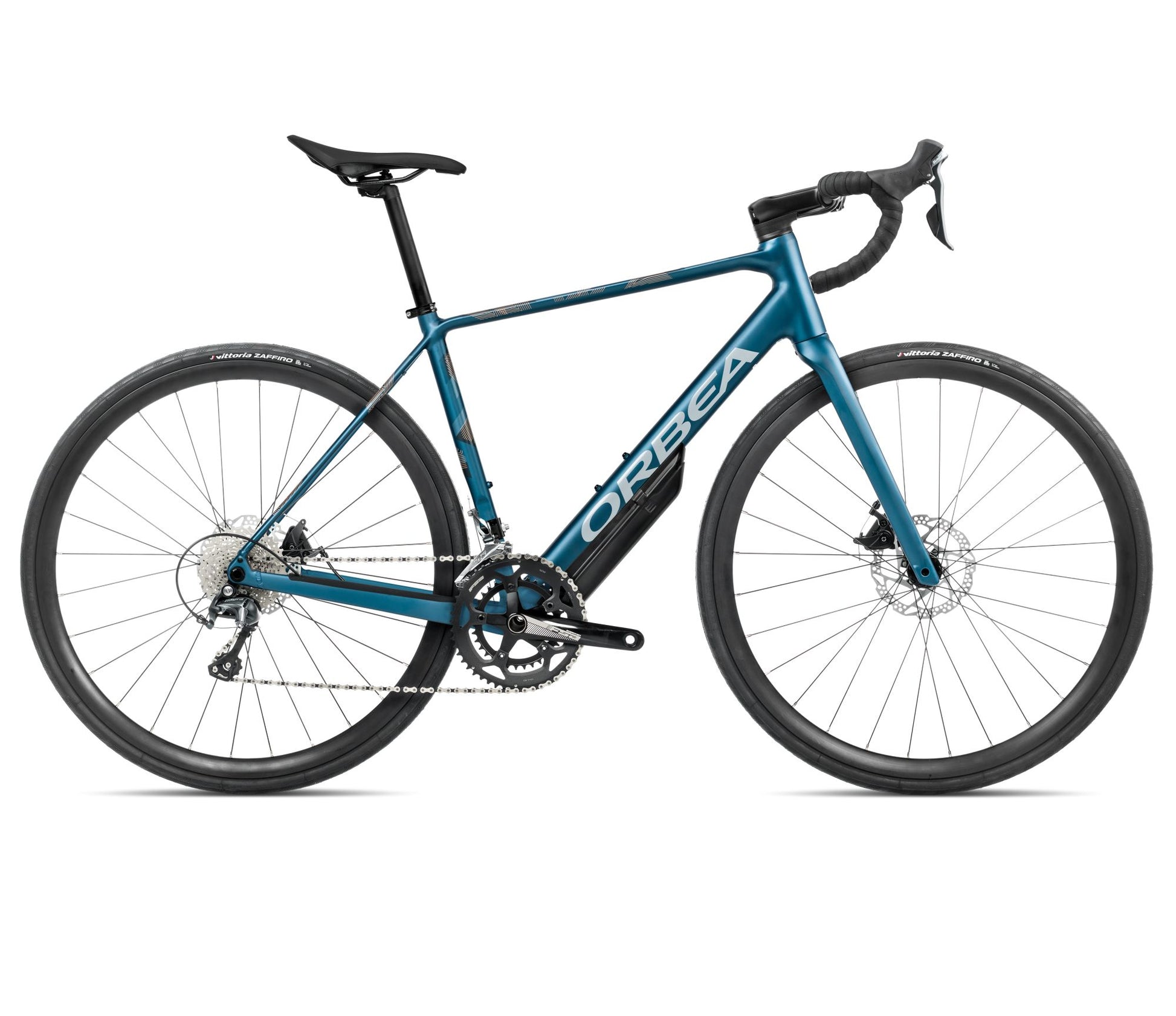

The Orbea AVANT H40 2025 is Orbea's endurance bike. The geometry is slightly less sporty than the Orca, which makes the Avant also extremely suitable for the novice racer or the less flexible people.
Specifications
| Frame: | Orbea Avant Hydro disc, hydroformed triple butted aluminium, HS 1.5" ICR, BB 68mm – BSC English, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, SP 27.2mm, MMS system. |
| Fork: | Orbea Avant Hydro 2025, full carbon, 1-1/8" - 1.5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1 |
| Headset: | FSA 1-1/2" Integrated Aluminum Cup |
| Stem: | OC Road Performance RP22, -5º |
| Send: | OC Road Performance RP31-R, Rise 15, Reach 70, Drop 125 |
| Brakes: | Jagwire RideRever Mechanical Disc |
| Front derailleur: | Shimano Tiagra 4700 |
| Rear derailleur: | Shimano Tiagra 4700 GS |
| Shifters: | Shimano Tiagra ST-4700 |
| Cassette: | Sun Race CSMS1 11-34t 10-Speed |
| Chain: | KMC X10 |
| Crankset: | FSA Omega Megaexo 34x50t |
| Wheelset: | Alloy, Tubeless, 700c, 19c, 28H |
| Rear hub: | Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded |
| Front hub: | Orbea Thru Axle 12x100mm M12x2 P1 Solid |
| Tyres: | Vittoria Zafiro V Rigid bead 700x28c |
| Seatpost: | SP 0.6, Alloy, 27.2mm, Setback 20 |
| Saddle: | Fizik Aliante R5 |
| Storage: | OC Toolbox TB03PP |
| Bicycle bag: | OC Toolbox TB03PP |
| Steering plugs: | Orbea Eva |
| EAN: | 8434446814266 |
