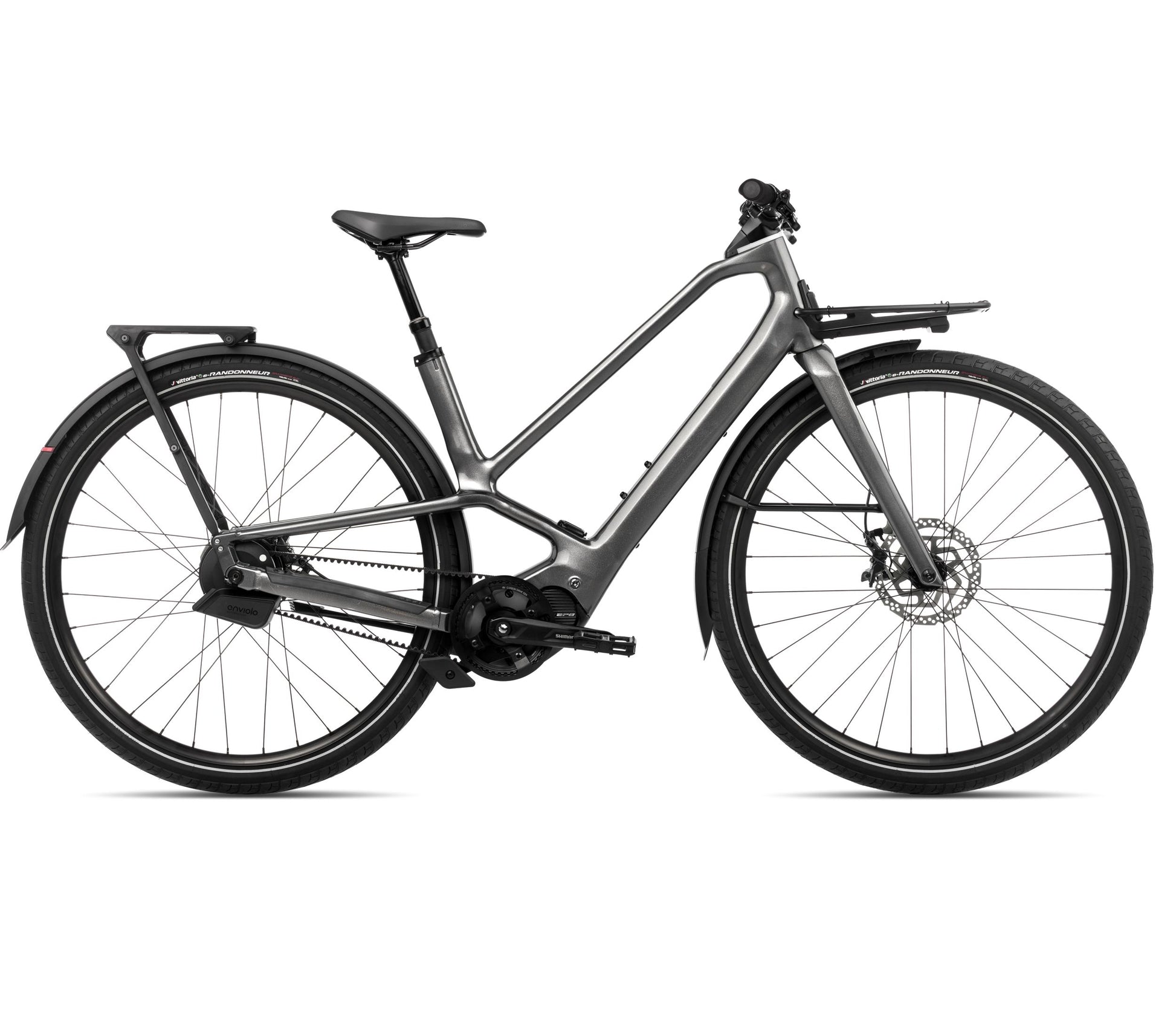

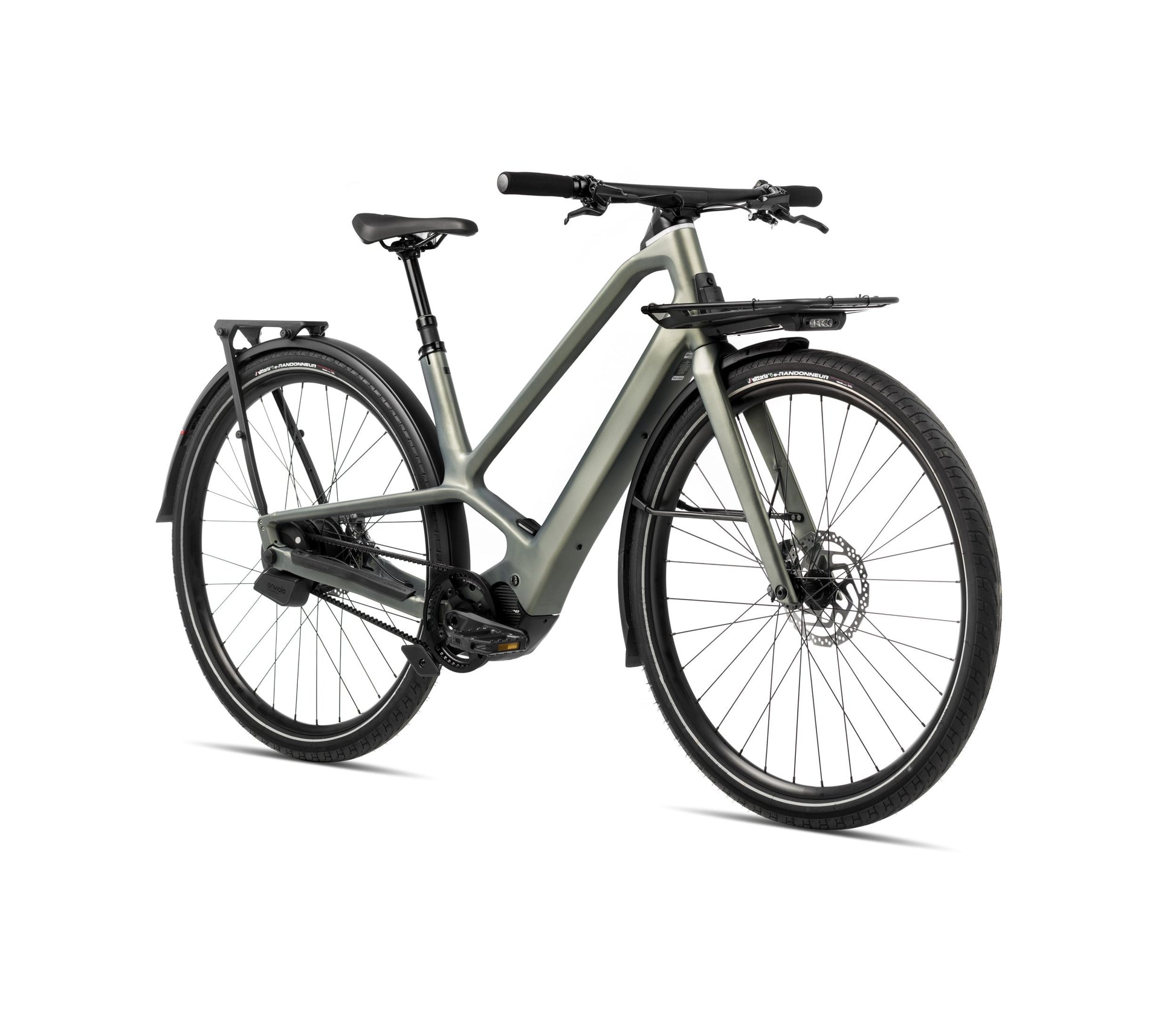

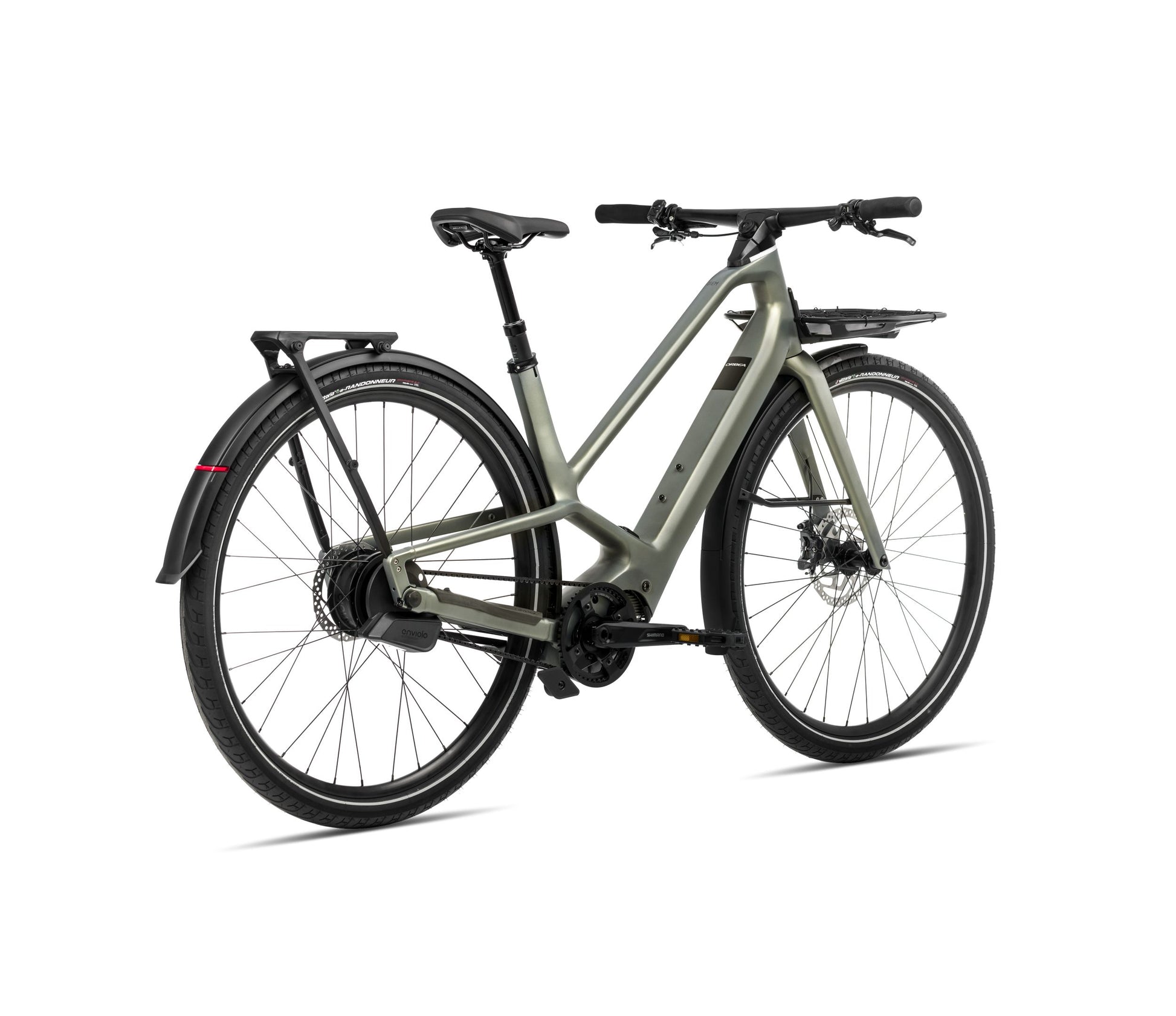

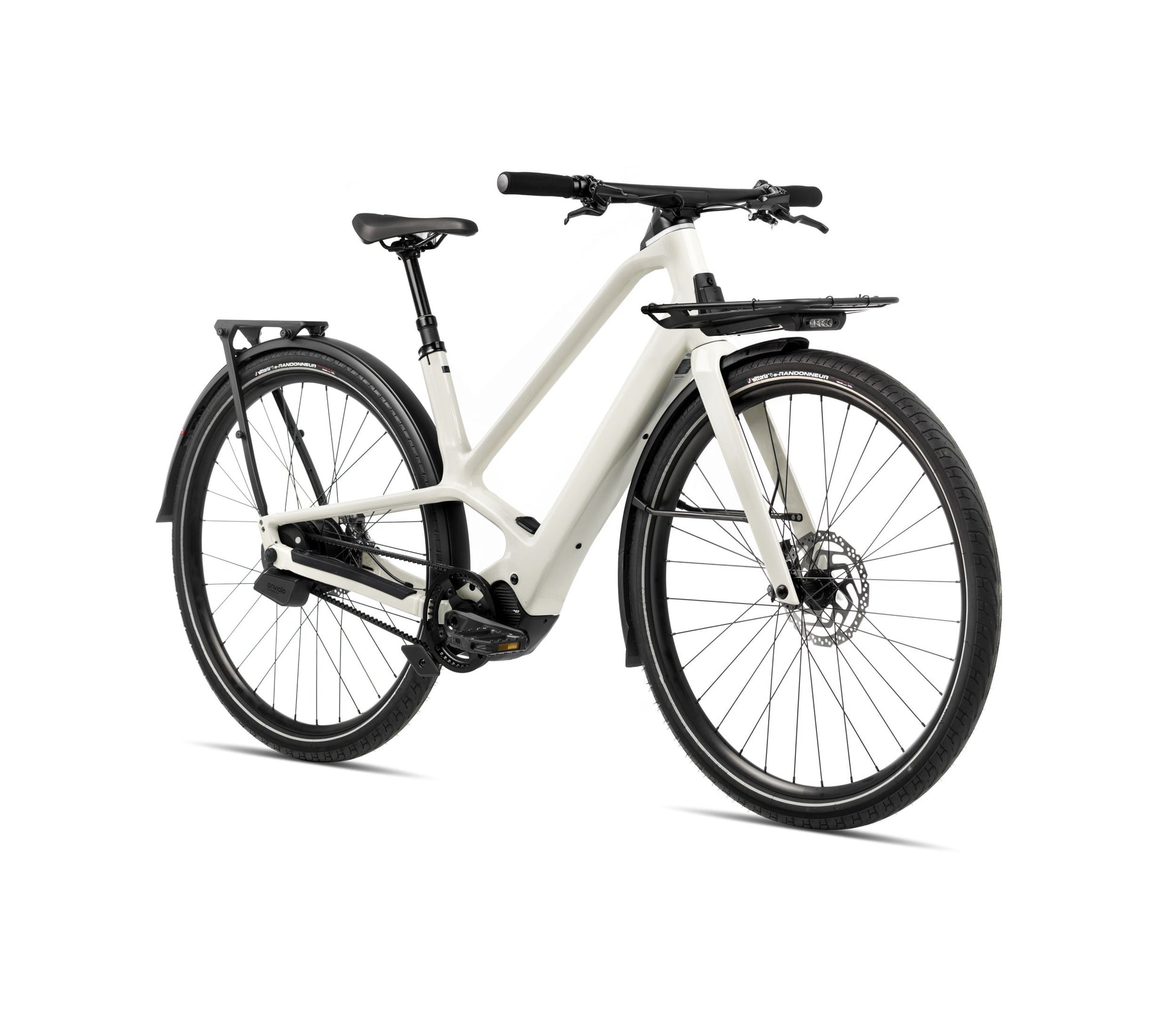

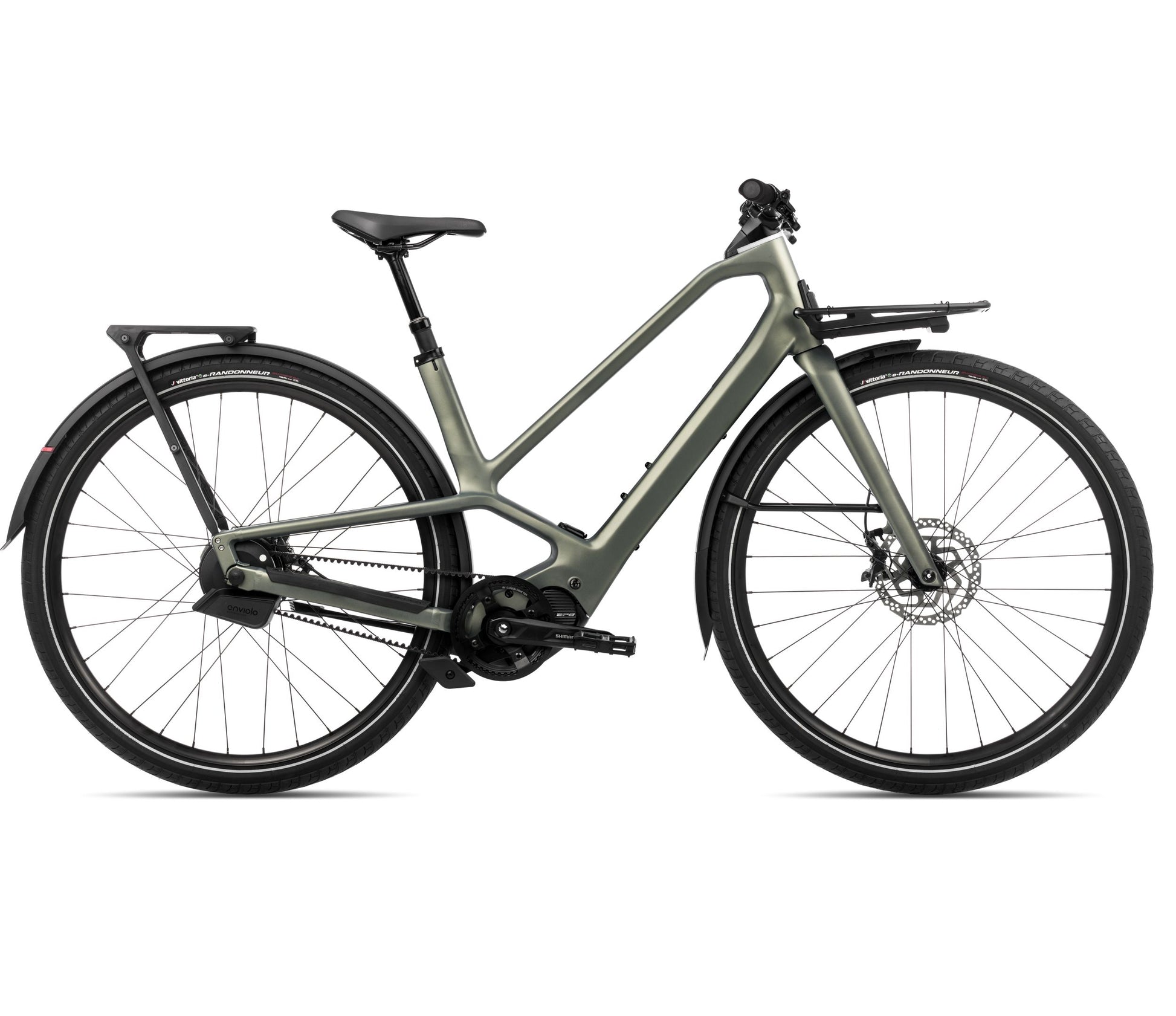

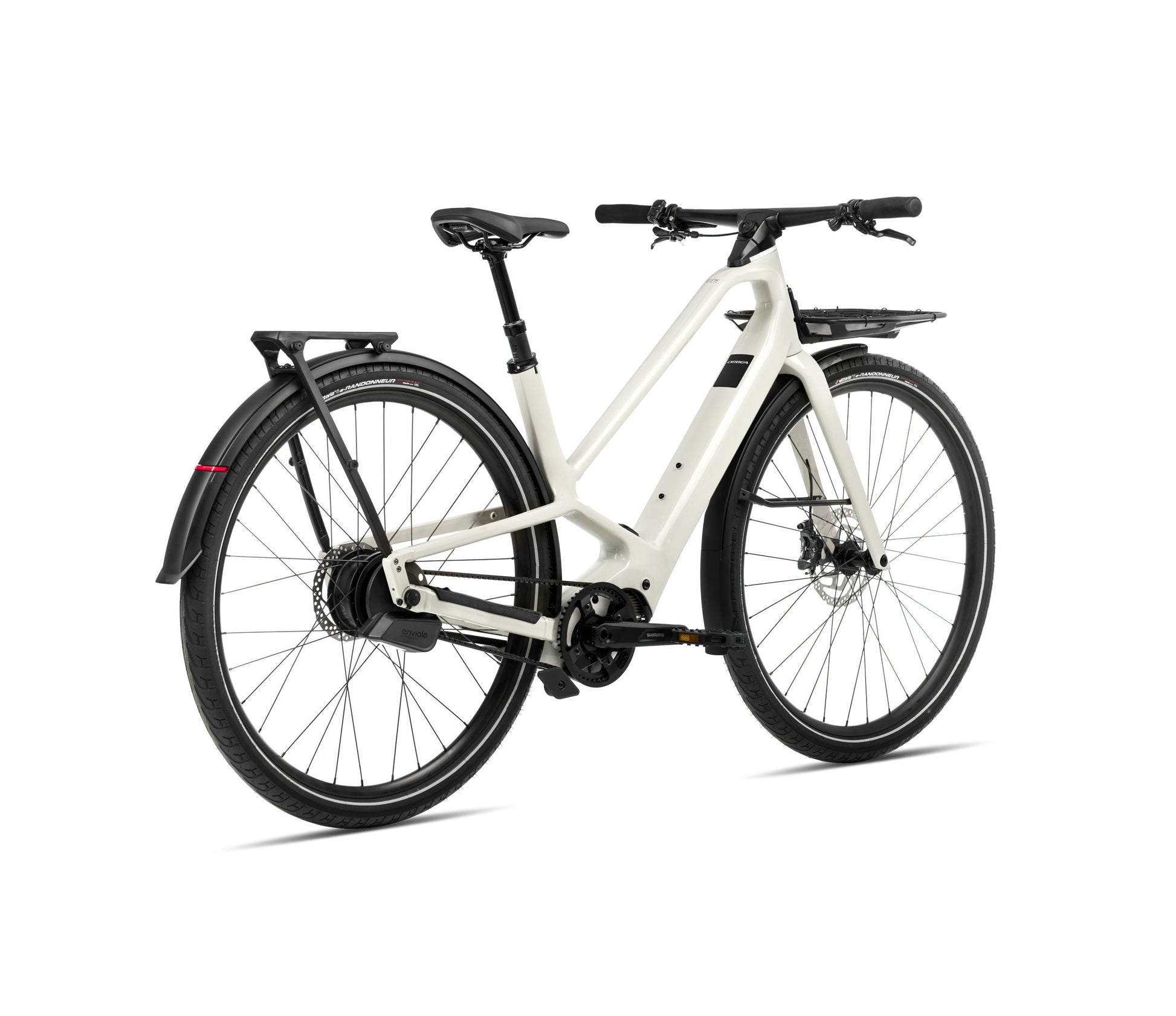

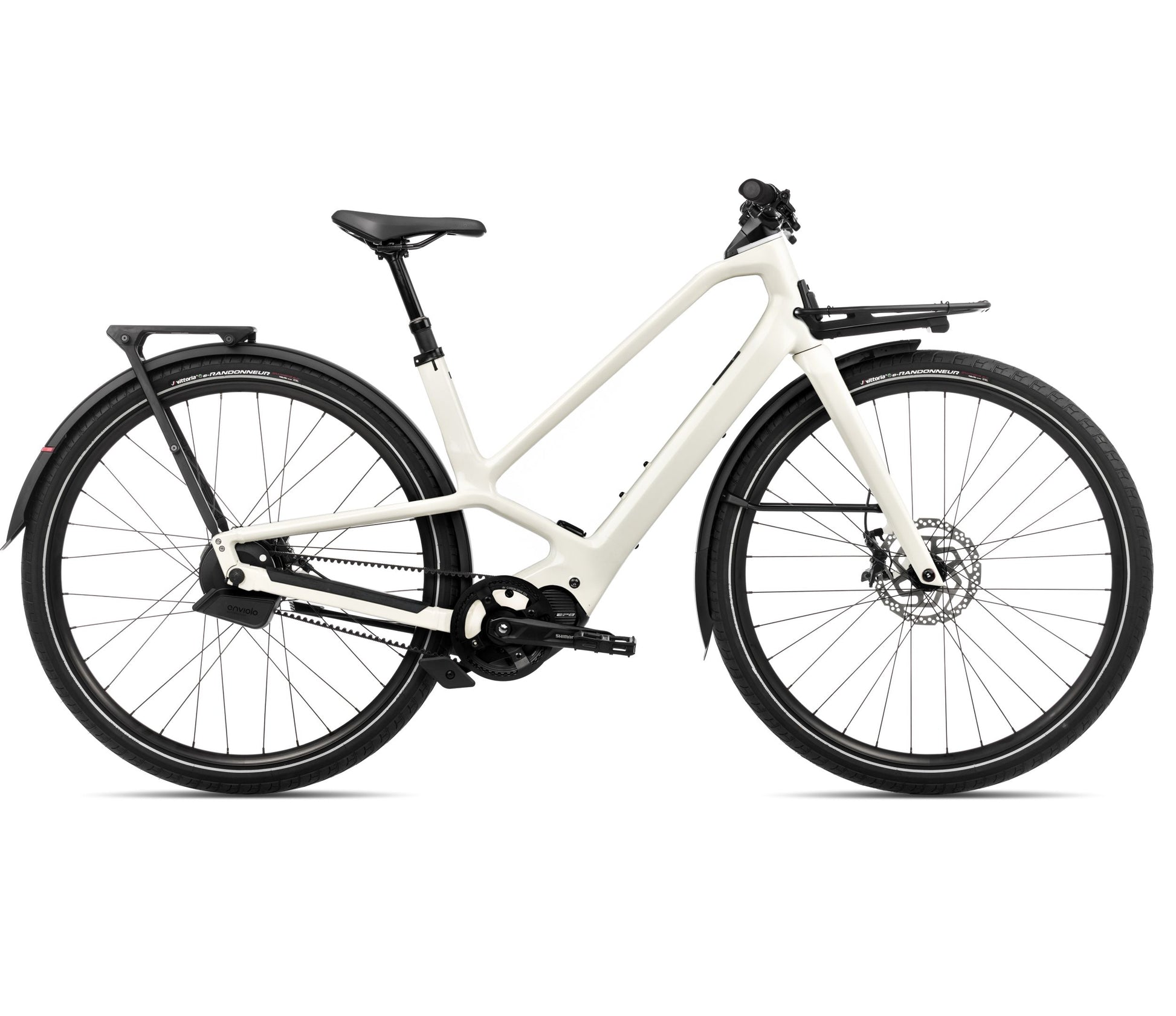

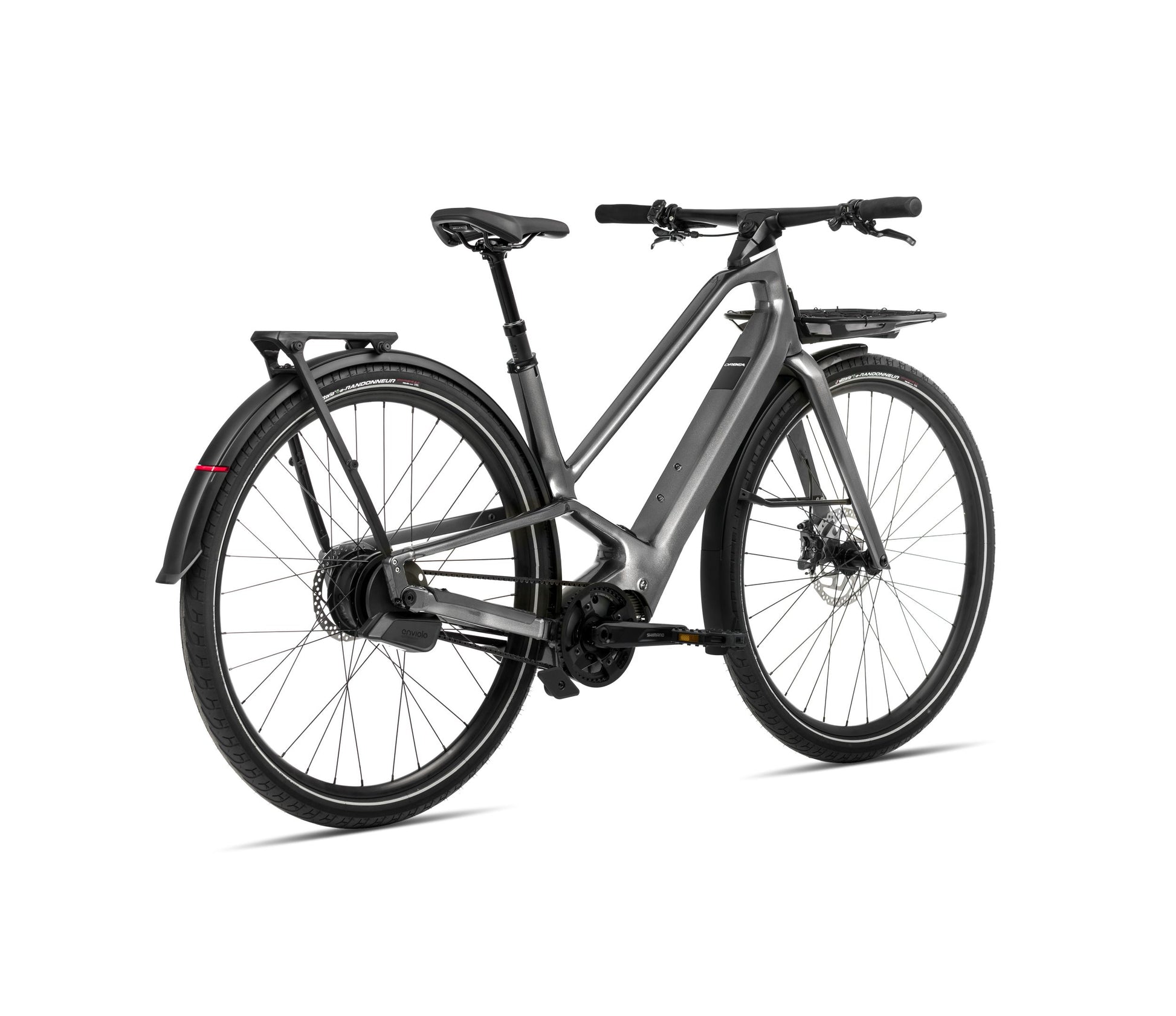

The Orbea DIEM 10 2025 is a sporty electric bike and is super light! The award-winning design also provides the somewhat sportier rider with a considerable amount of comfort.
Specifications
Frame: | Orbea Diem Hydro High Polished 2024, Flex Tech, 135x9 / 142x12, Headset Routing, Custom Kickstand, Orbea Urban Cockpit and equipment compatible |
Fork: | Orbea Diem carbon fork, full carbon, 1" 1/8 - 1" 1/5, thru axle 12x1, post mount disc mount, Thrue Axle12x100mm, Long mudguards compatible. |
Headset: | FSA 1-1/2" Integrated Aluminum Cup |
Send: | Orbea Urban, Integrated Light, Rise 0, Width 720 |
Brakes: | Shimano Cues U8020 Hydraulic Disc |
Rear derailleur: | Enviolo Automatiq, BT |
Cassette: | Gates CDX 34t for Enviolo |
Chain: | Gates CDX Belt |
Crank arms: | Shimano Steps EM600 |
Pedals: | VP-537 Black |
Chain guard: | Gates CDS |
Wheelset: | Alloy, Tubeless, 25c, 32H |
Tyres: | Vittoria e-Randonneur 50-622, Reflective band |
Seatpost: | OC Mountain Control MC21, 31.6mm, Dropper |
Dropper switch: | Shimano SL-MT500 |
Saddle: | Selle Royal Vivo Ergo |
Splashback: | Curana Apollo Orbit 60mm |
Headlight: | Supernova Starstream Front Light with High Beam |
Second front light: | Orbea integrated, USB-C charging point |
Rear light: | Orbea Fender integrated, with alert light |
Standard: | Orbea Diem Integrated |
Battery: | Orbea Internal 630Wh (Optional 250 Wh Range Extender) |
Engine: | Shimano EP801 |
Charger: | Orbea 2.Generation eBike Smart charger 42V/2-4A |
Operation: | EN600-L |
Call: | Knog OI Classic |
Bicycle bag: | Orbea RR-01 Alloy, w/Mik & Mik Side and Ortlieb QL3.1 system. Max. 20Kg |
Bicycle basket front carrier: | Orbea RF-01 Alloy, Max. 10Kg |
EAN: | 8434446716591 |
