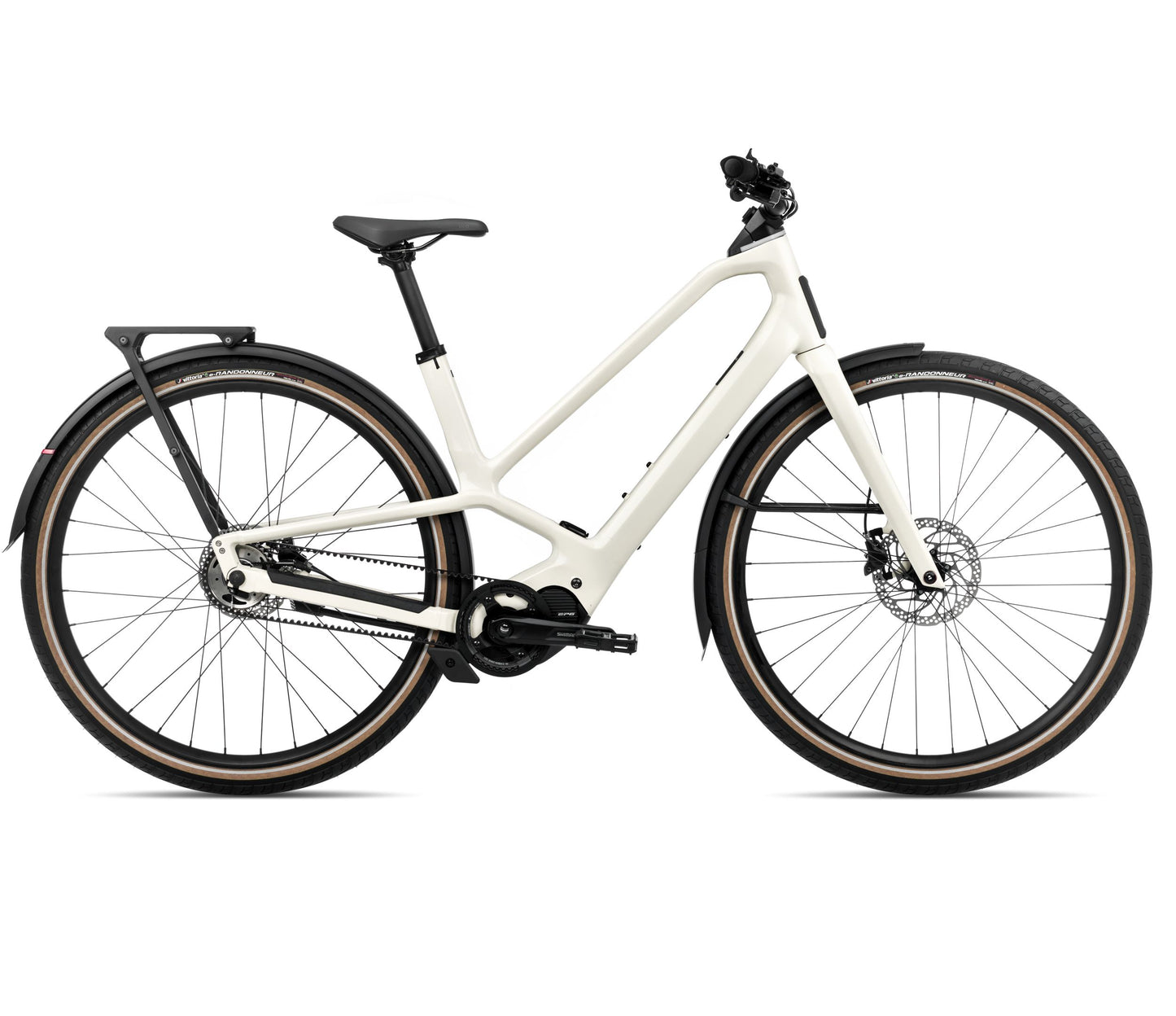

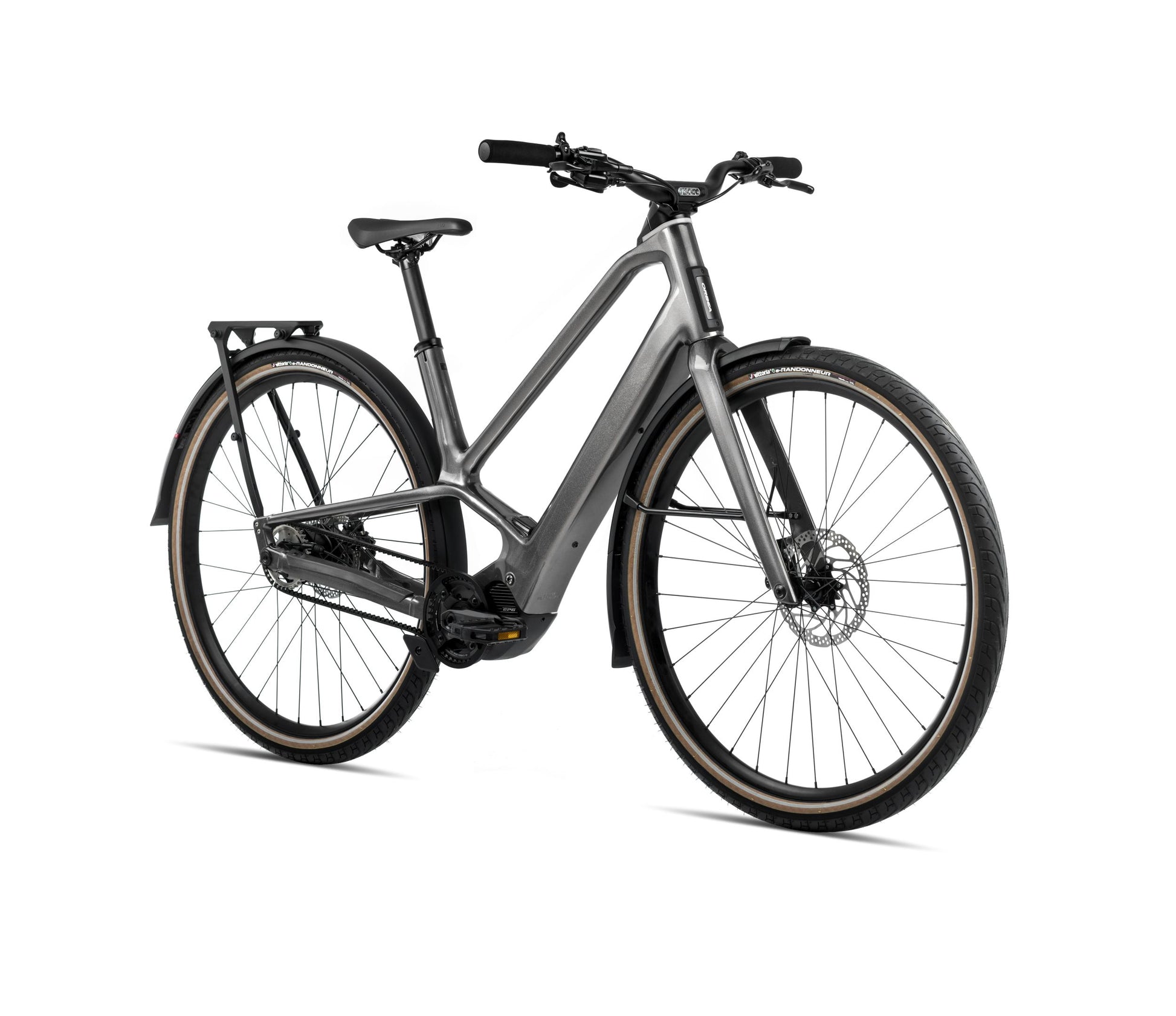

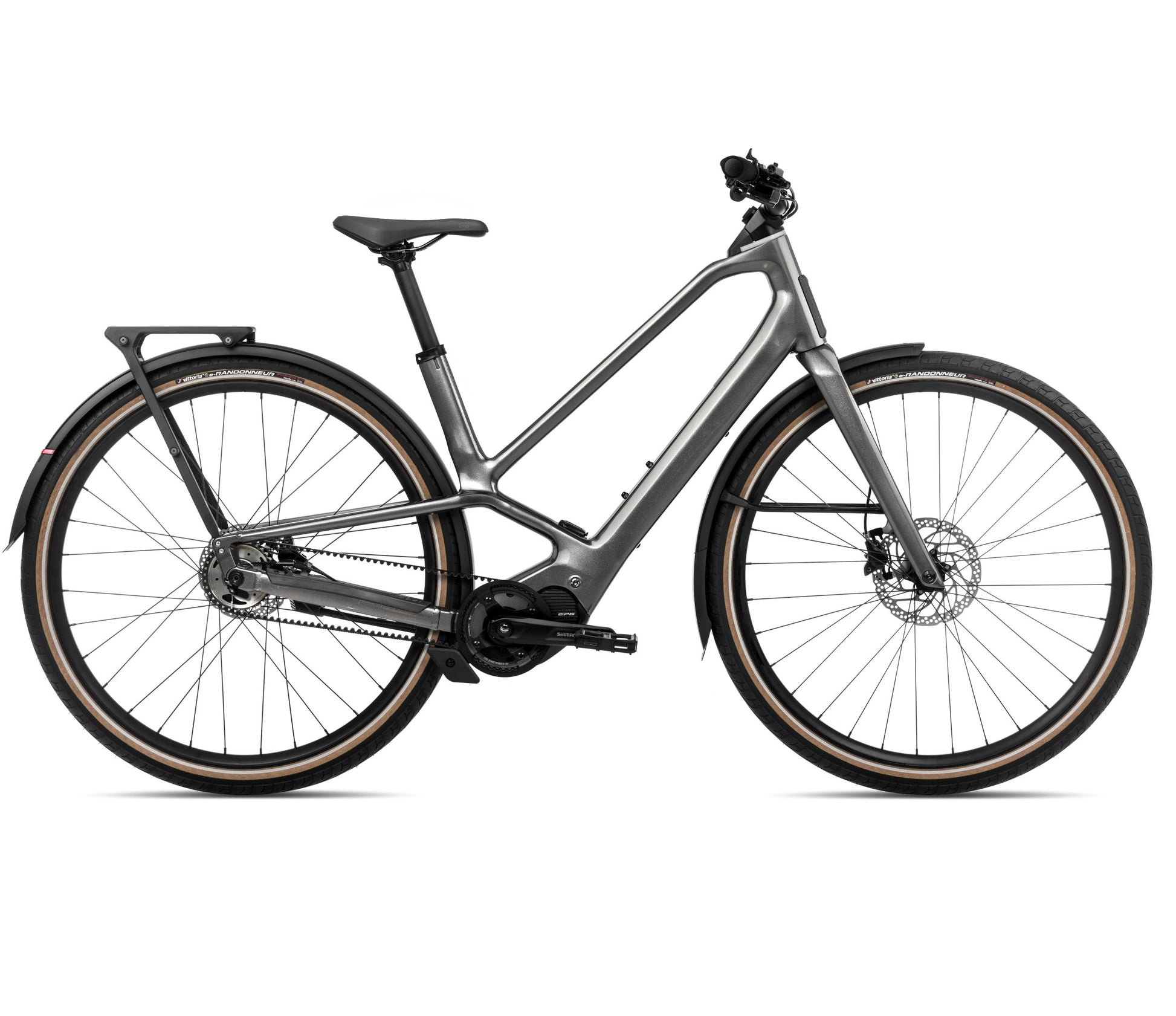

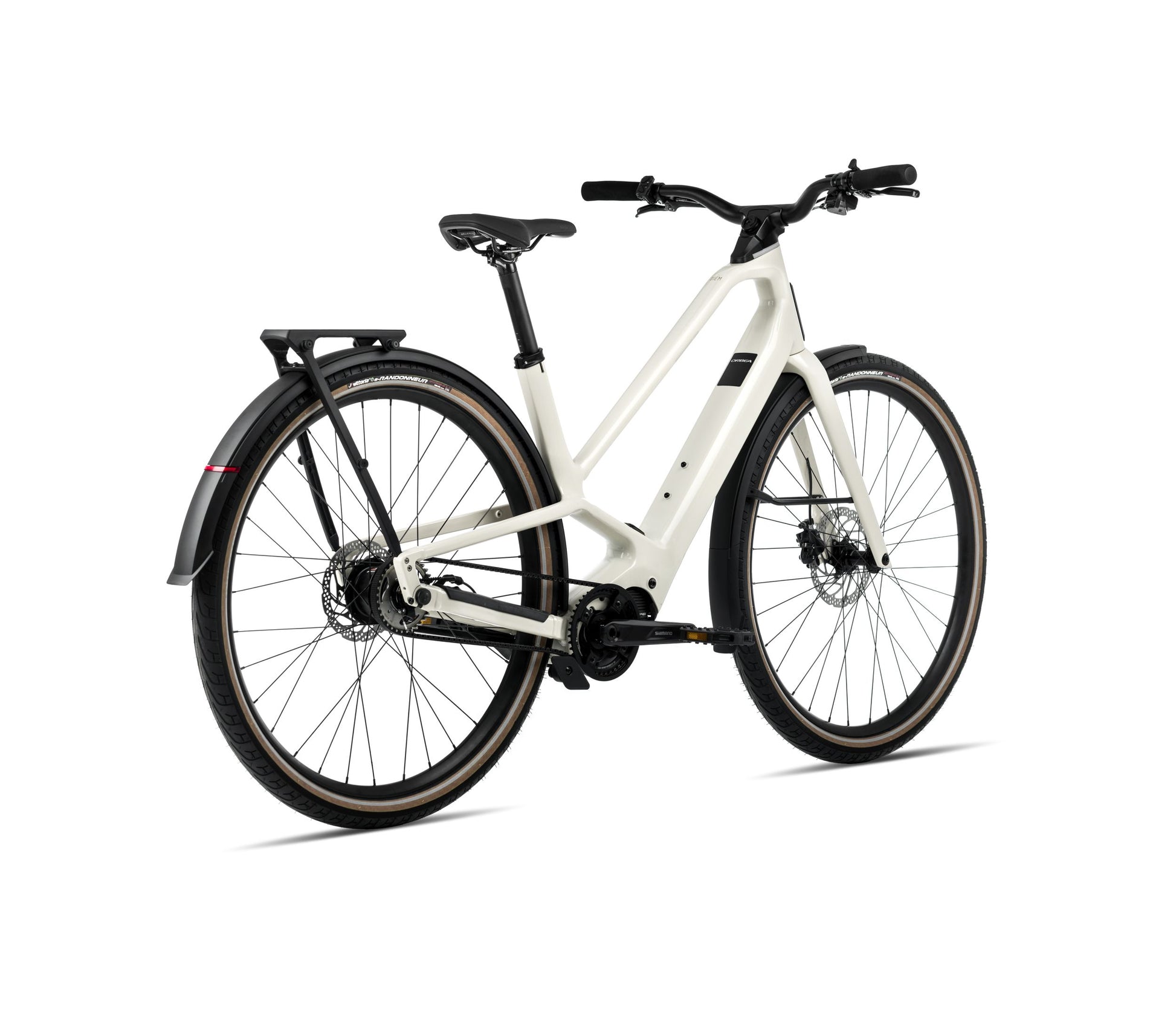

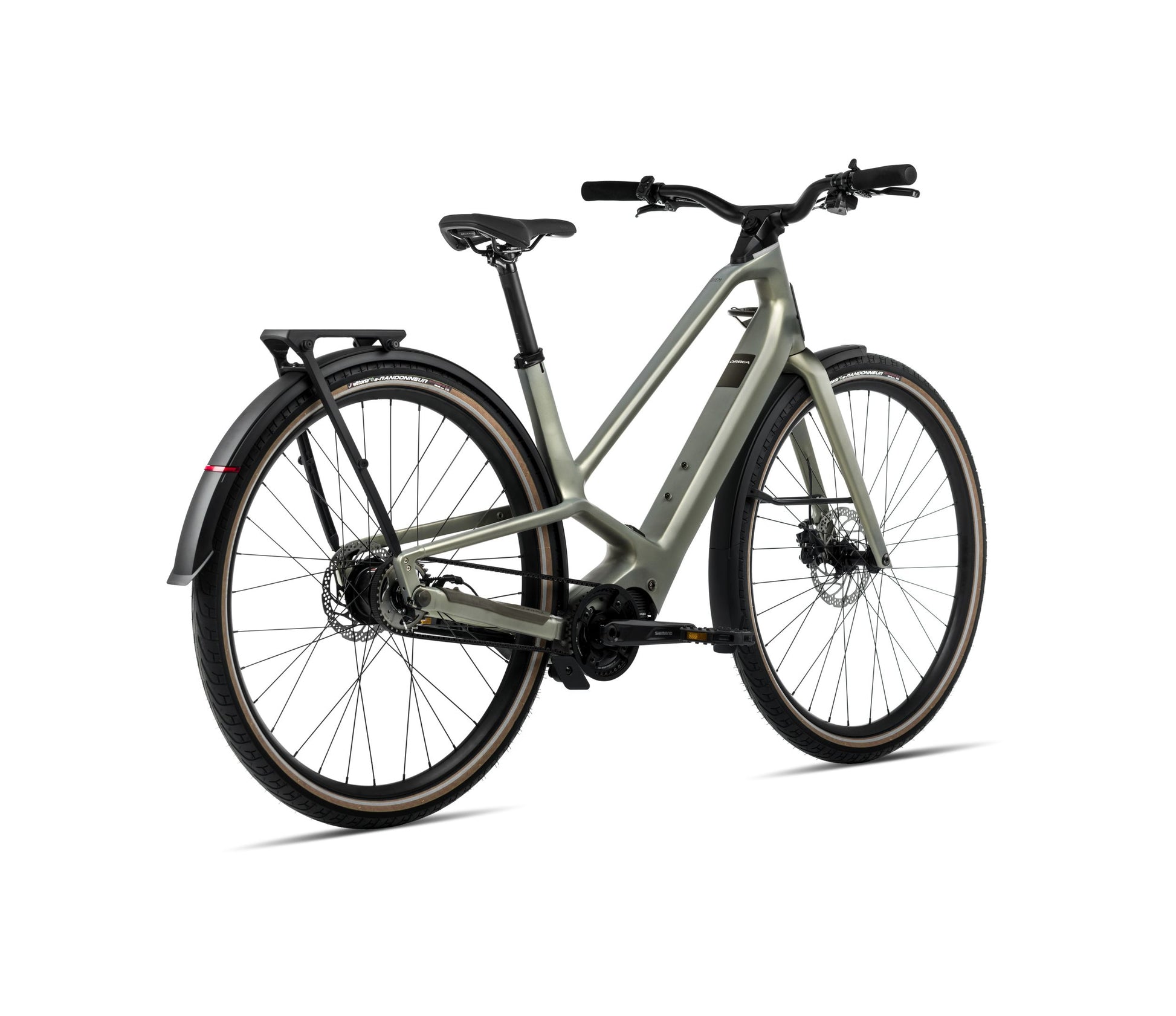

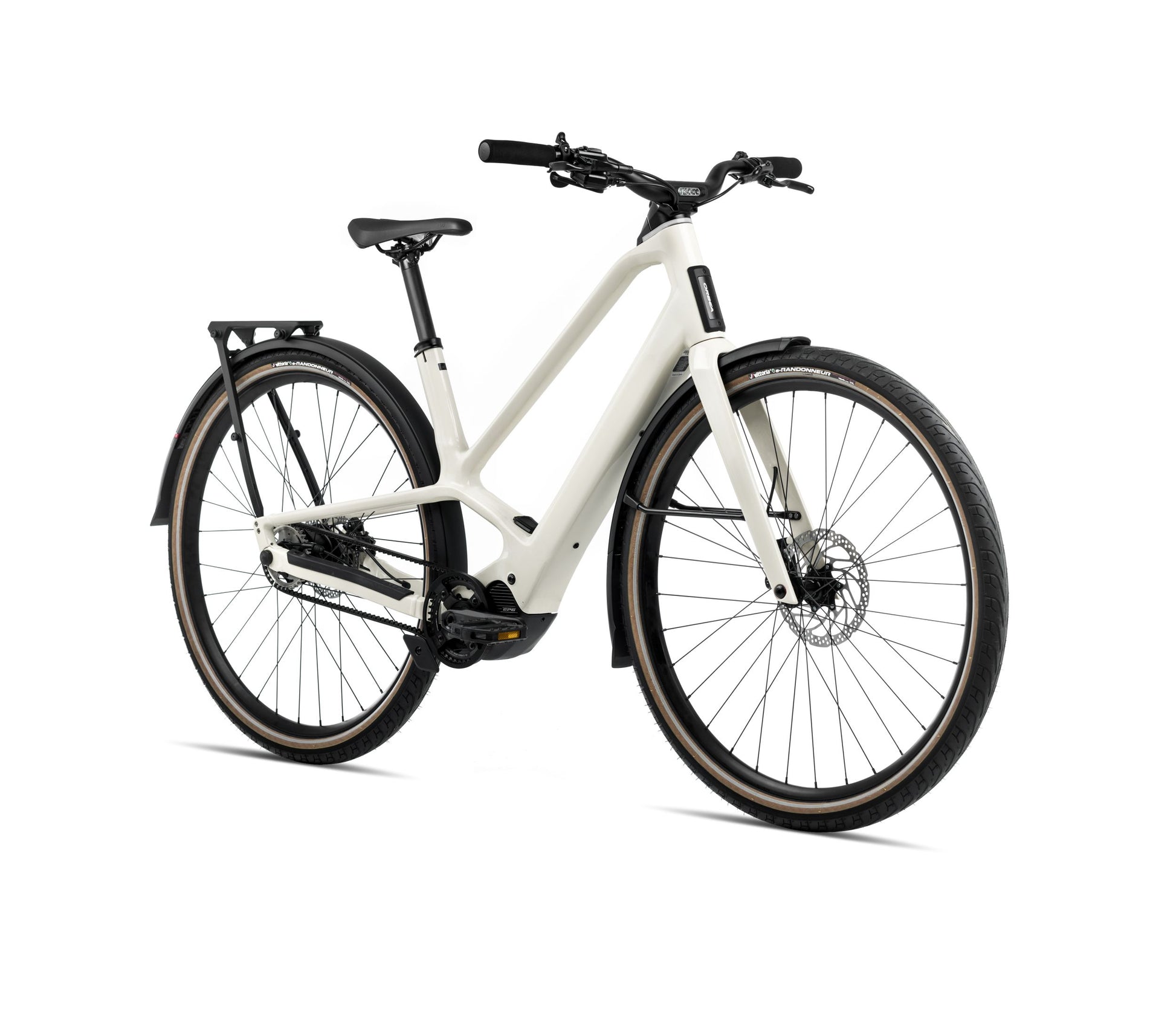

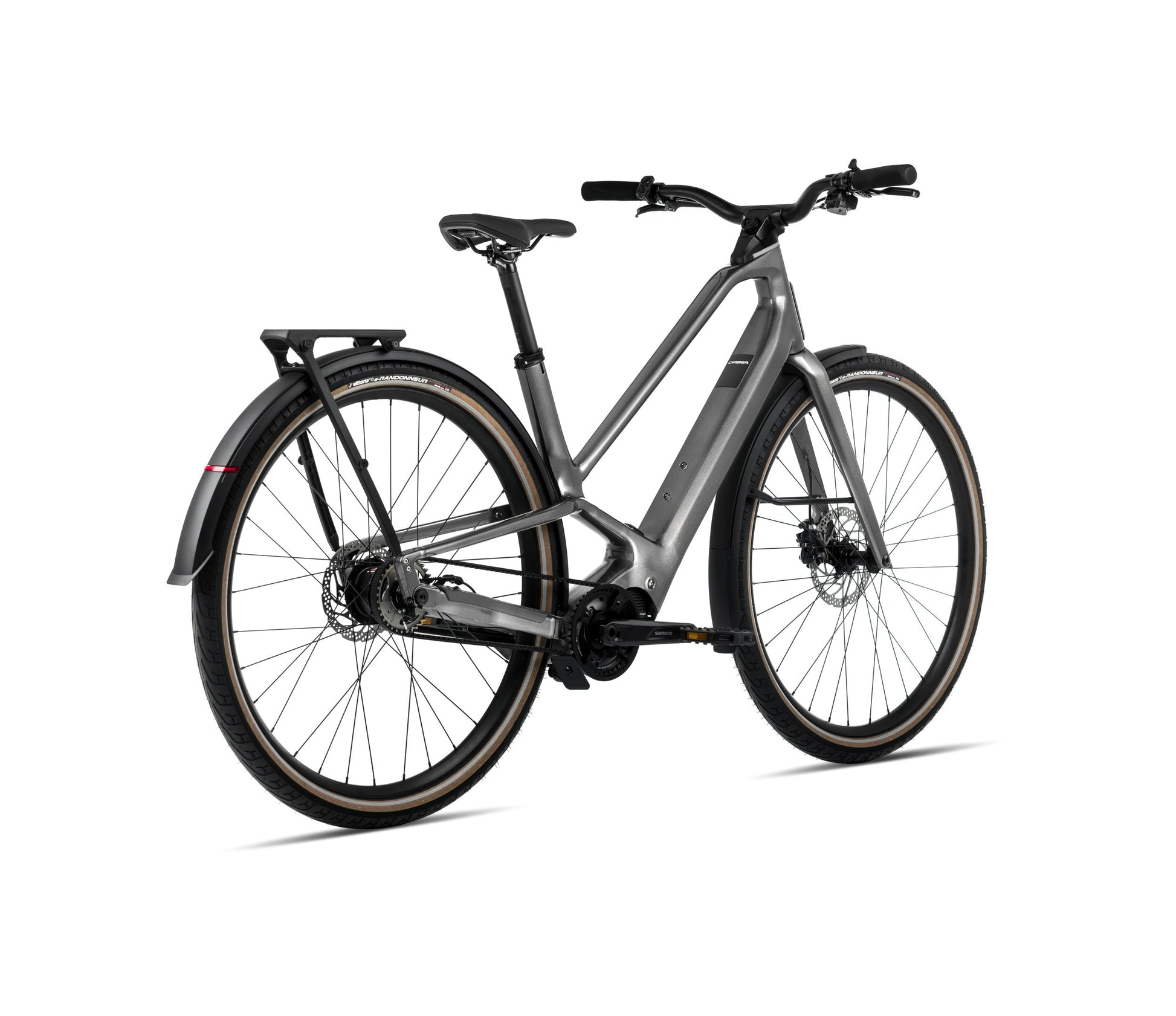

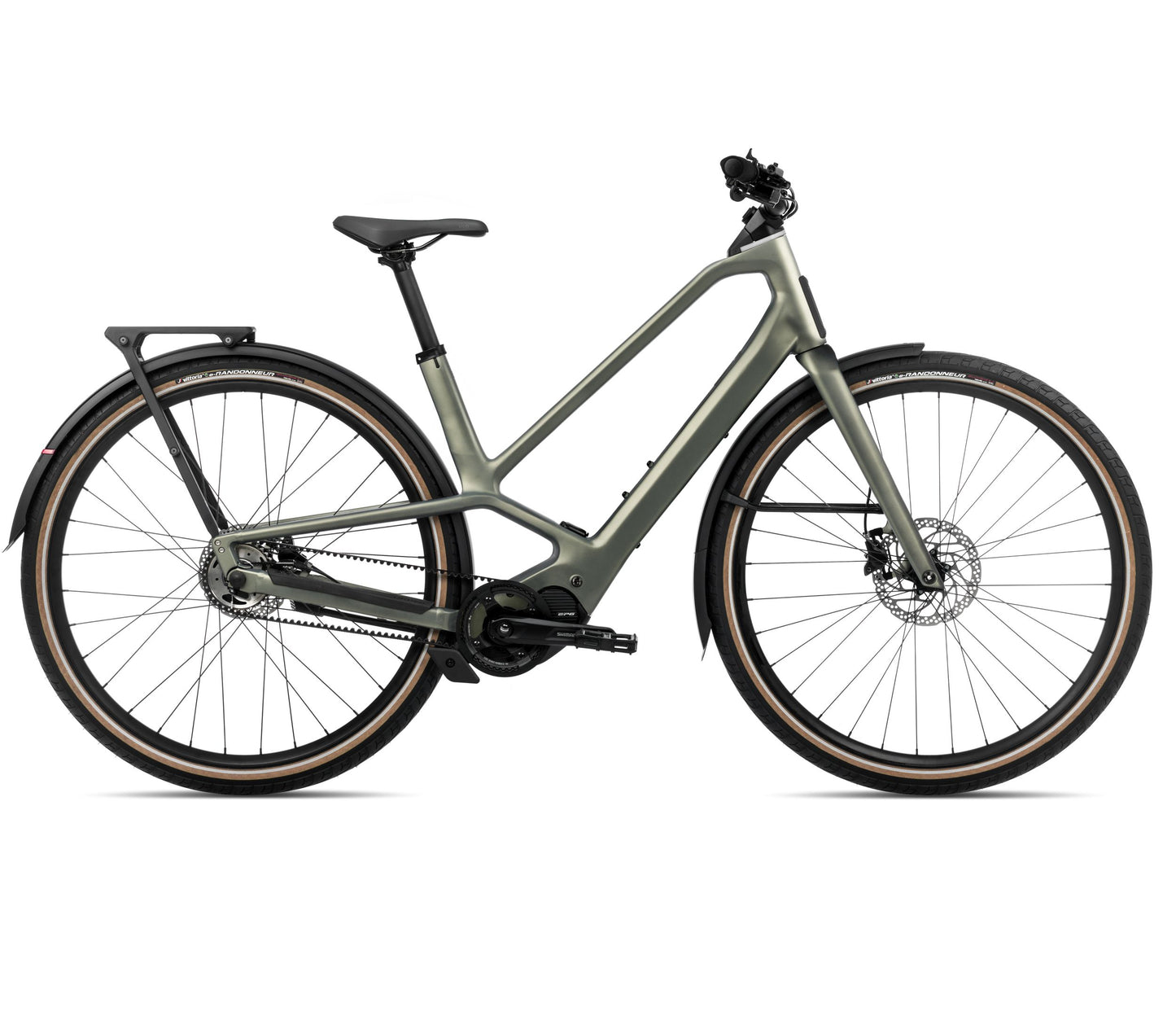

The Orbea DIEM 20 2025 is a sporty electric bike and is super light! The award-winning design also provides the somewhat sportier rider with a considerable amount of comfort.
Specifications
| Frame: | Orbea Diem Hydro High Polished 2024, Flex Tech, 135x9 / 142x12, Headset Routing, Custom Kickstand, Orbea Urban Cockpit and equipment compatible |
| Fork: | Orbea Diem carbon fork, full carbon, 1" 1/8 - 1" 1/5, thru axle 12x1, post mount disc mount, Thrue Axle12x100mm, Long mudguards compatible. |
| Headset: | FSA 1-1/2" Integrated Aluminum Cup |
| Send: | Orbea Urban, Integrated Light, Rise 54, Width 700 |
| Brakes: | Shimano MT201 Hydraulic Disc |
| Rear derailleur: | Shimano Nexus Inter-5 |
| Shifters: | Microshift TN71 for Nexus Inter 5 |
| Cassette: | Gates CDX 34t for Shimano Inter 5e |
| Chain: | Gates CDX Belt |
| Crank arms: | Shimano Steps EM600 |
| Pedals: | VP-537 Black |
| Chain guard: | Gates CDS |
| Wheelset: | Alloy, Tubeless, 25c, 32H |
| Tyres: | Vittoria e-Randonneur 50-622, Reflective band |
| Seatpost: | Alloy 31.6x300mm Offset 0 |
| Saddle: | Selle Royal Vivo Ergo |
| Splashback: | Curana Apollo Orbit 60mm |
| Headlight: | Supernova Starstream front light low beam |
| Second front light: | Orbea integrated, USB-C charging point |
| Rear light: | Orbea Fender integrated, with alert light |
| Standard: | Orbea Diem Integrated |
| Battery: | Orbea Internal 630Wh (Optional 250 Wh Range Extender) |
| Engine: | Shimano EP600 |
| Charger: | Orbea 2.Generation eBike Smart charger 42V/2-4A |
| Operation: | EN600-L |
| Call: | Knog OI Classic |
| Bicycle bag: | Orbea RR-01 Alloy, w/Mik & Mik Side and Ortlieb QL3.1 system. Max. 20Kg |
| EAN: | 8434446716478 |
