Orbea Occam LT H10 2027

Orbea Occam LT H10 2027

€3.799,00 EUR
€3.799,00 EUR
Sale Contact us for availability
Taxes included. Shipping calculated at checkout.
Size
Color
Available on 18-12-2026
One year free maintenance service
Pick up or home delivery (+2 days, €0)

Orbea Occam LT H10 2027

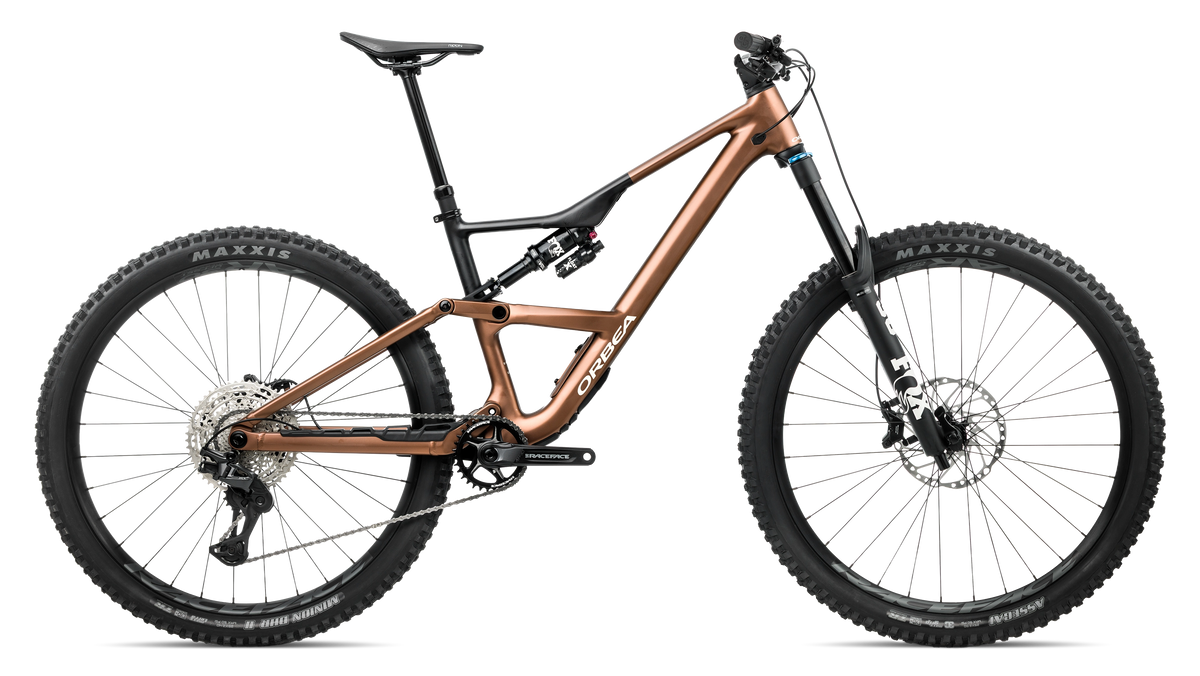

S/Metallic Cinnamon (Matte) - Black (Gloss)

  • 08-12-2026
    The bike is currently being manufactured at Orbea in Spain.
  • 12-12-2026
    After manufacturing, Orbea will need a few days to assemble the bike.
  • 17-12-2026
    After assembly, Orbea will ship the bike to Renders Tweewielers.
  • 18-12-2026
    Once the bike arrives at our store, we take it almost completely apart and turn it into the best bike you’ve ever had. This includes applying the correct greases, routing the cables, bleeding and bedding in the braking system, adjusting the fit, and modifying components based on your preferences. These steps are time-intensive and are often skipped elsewhere to save costs. At Renders Tweewielers, we place great value on this process because the difference is truly noticeable.
  • 18-12-2026
    Once the bike is ready, we are happy to take the time to answer all your questions and provide instructions on the bike and its maintenance. We can also ship the bike via a specialized courier service. This usually takes 2 days. See our shipping policy.
  • After 500–1000 km, we schedule the first service. During the first year after purchase, we perform maintenance free of charge. You only pay for parts that need to be replaced due to wear.
View full details

Occam LT 2027 models

  1. H30 €2.799 Aluminium
  2. H10 €3.799 You are viewing this
  3. M30 €4.499 Carbon
  4. M10 €5.999
  5. M-TEAM €7.999

Lower price: Occam LT H30

€1.000 less

Aluminium LT with 160 mm for rough terrain

What the Occam LT H30 doesn't have:

  • Fox 36 Float Performance fork with Grip 3-position damping
  • Fox Float X shock with reservoir, consistent on long descents
  • Shimano XT shifting, MT620 brakes and Maxxis Assegai MaxxGrip

Higher price: Occam LT M30

€700 more

Carbon LT with Fox Performance suspension

What the Occam LT M30 adds:

  • OMR carbon frame, lighter and stiffer than aluminium
  • Flip chip and adjustable head angle to tune the geometry
  • Shimano CS-M7200 cassette

Description

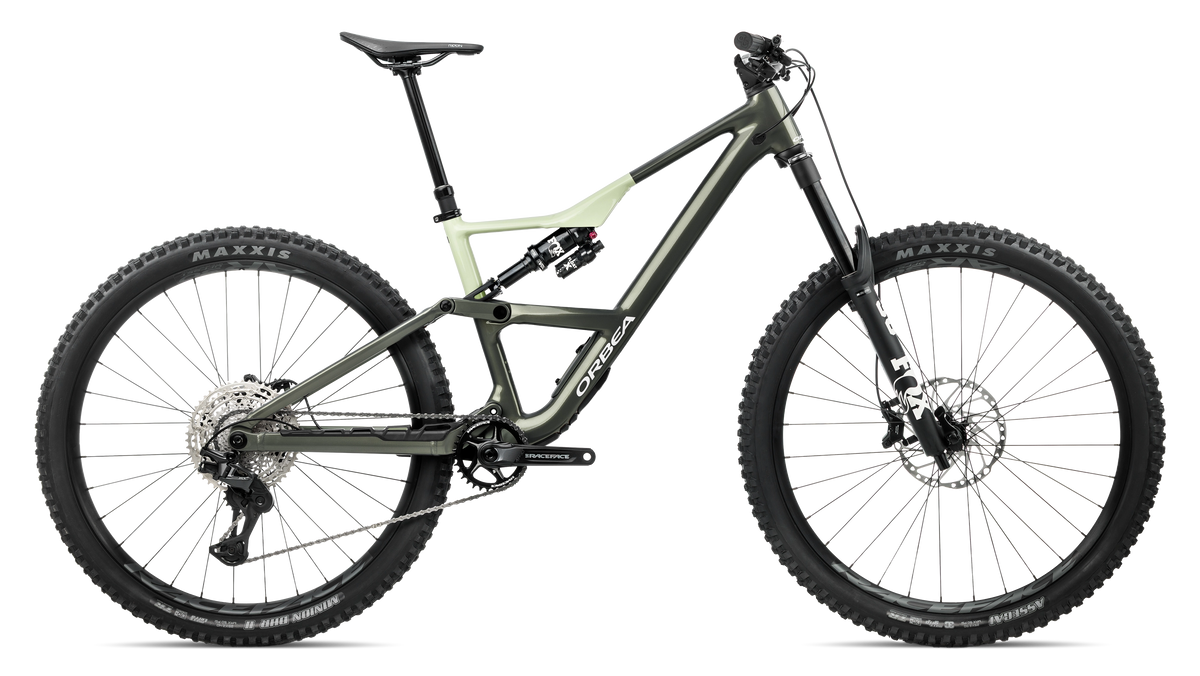

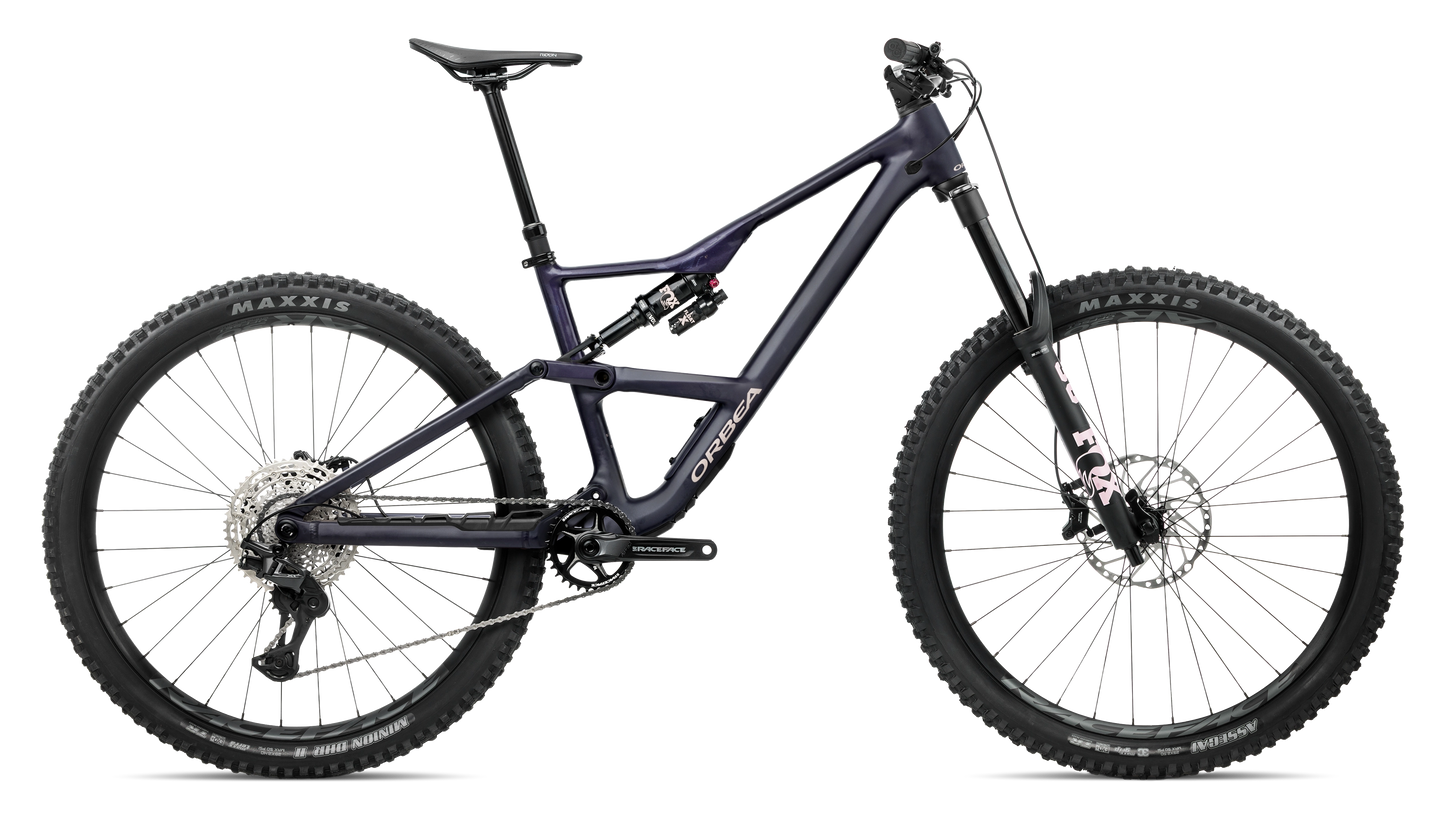

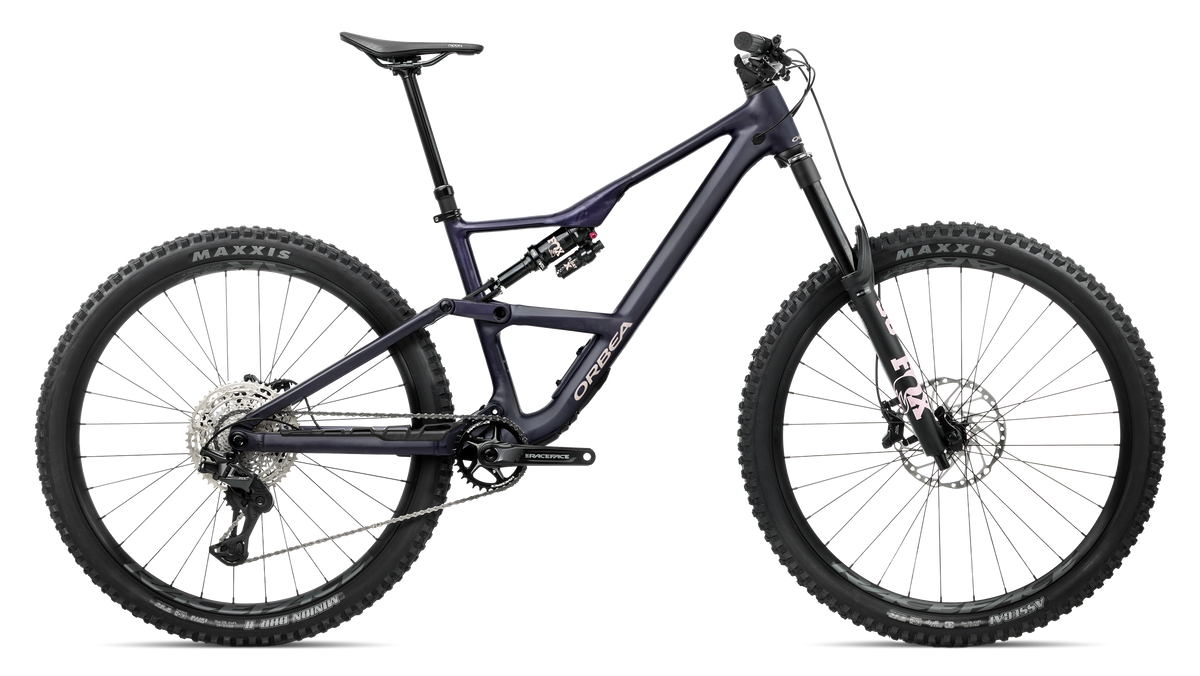

The Orbea Occam LT H10 2027 is the best-equipped aluminium Occam LT. The Occam Hydro frame with 160 mm of travel up front, 150 mm at the rear and the Concentric rear end is the same as on the H30, but the suspension moves up a class. The Fox 36 Float Performance fork has three-position Grip damping, so one dial chooses between open, medium and firm. At the rear is a Fox Float X Performance shock with an extra oil reservoir: that keeps the damping consistent, even when it heats up on a long descent. You shift with a Shimano XT M8200 rear derailleur and XT shifter over a 10-51 cassette, with a Race Face Aeffect crank. The Shimano MT620 4-piston brakes are powerful, and the wide Race Face AR 30 rims with 2.50 inch Maxxis Assegai tyres in the soft MaxxGrip compound give grip on roots and loose rocks. The Shimano lever drops the dropper seatpost. The Occam LT H10 comes in Metallic Cinnamon (Matt) - Black (Gloss), Spaceship Green - Acid Gum (Gloss), Tanzanite (Matt - Gloss). Looking for an aluminium trail bike that is ready for enduro-style descents, with suspension and tyres you will not want to replace straight away? Then the Orbea Occam LT H10 is the smartest choice.

Specifications

Frameset

Frame Orbea Occam Hydro. Concentric Boost 12x148 rear axle. Pure Trail geometry. Both Internal & External cable routing. Asymmetric design. 29" wheels. Linkage compatible with OC multitool
Fork Fox 36 Float Performance 160, Grip 3-Pos, QR15x110
Shock Fox Float X Performance 2-Pos Evol LV custom tune 210x55mm
Headset FSA 1-1/2" Integrated Aluminium Cup

Drivetrain

Crankset Race Face Aeffect 32t
Shifters Shimano XT M8200 I-Spec EV
Brakes Shimano MT620 Hydraulic Disc
Cassette Shimano CS-M6200 10-51t 12-Speed
Rear Derailleur Shimano XT M8200 SGS Shadow Plus
Chain Shimano M6100

Wheels & Tyres

Wheels Race Face AR 30c Tubeless Ready
Tyres Maxxis Assegai 2.50" 60TPI Fold 3C MaxxGrip Exo+ TR

Components

Saddle Fizik Terra Ridon X5 145mm
Handlebar OC Mountain Control MC30, Rise20, Width 800
Stem OC Mountain Control MC21, 0º
Grips OC Lock On

Info

EAN 8434446146787

Explore the Orbea Occam LT 2027

Explore the Orbea Occam LT 2027

The Orbea Occam LT is a full-suspension trail mountain bike for steep, technical descents you want to reach under your own power. Its 160 mm fork and 150 mm of rear travel offer more room to absorb rock gardens, roots and braking bumps. Progressive rear suspension supports the bike deeper in its travel. A flip chip lets you tune the geometry to the terrain. The Occam LT is available with aluminium or carbon construction, depending on the build.
